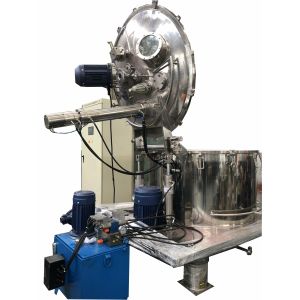

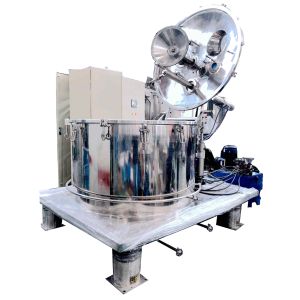

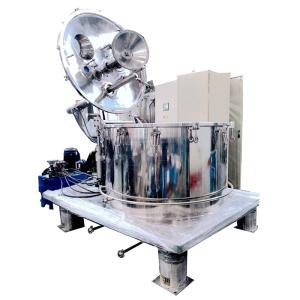

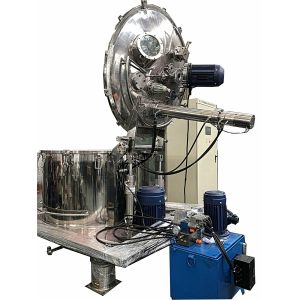

PPSBDL Bag shaking Scraper Bottom Discharge Sugar Machinery Centrifuges
Brief introduction
PPSBDL series automatic bag shaking scraper bottom discharging centrifuge is continuous working and intermittent discharging by scraper filtration centrifuge. This is a new kind of centrifuge developed on the basis of PPSBD centrifuge, pneumatic bag shaking device is added to remove the residual filter cake thoroughly. This centrifuge adopts PLC control and step-less speed adjustment by frequency conversion speed controller, which energy can be consumed by dynamic braking system. This design could reach the result of even stop of centrifuge. In accordance with each preset program, feeding, separating, washing, dehydration, discharging, bag shaking on each speed.
This series centrifuges are widely used on suspension separating of middle size particle, especially when the customer do not have a high requirement on solid crystal figure.
Main Characteristics
1. Automatic frequency speed control
2. It has all advantages of common scraper centrifuge
3. Full-automatic operation for shaking bag falling off and reset.
4. The filter bag can be moved up and down inside the drum to produce oscillation effect and remove the remnant filter cake thoroughly
5. Big clamshell or whole shell reversible type are achievable according to users’ demands
6. The automatic residual cakes removing device is optional(have owned the national patent).
Technical Parameter
Item/Model | PPSBDL100 | PPSBDL210 | PPSBDL400/520 | PPSBDL534 | PPSBDL672 |
| Basket diameter(mm) | 800 | 1000 | 1250 | 1350 | 1400 |
| Basket height(mm) | 400 | 500 | 500/630 | 630 | 700 |
| Basket Volume(L) | 80 | 165 | 310/400 | 445 | 560 |
| Loading capacity(Kg) | 100 | 210 | 400/520 | 534 | 672 |
| Max.speed(r/min) | 1500 | 1200 | 1000/1200 | 1200 | 1150 |
Structure Sketch Map
Working principle
During the process of discharging,the scraper acts,under the impact of it most products are discharged through the blanking hole on the bottom of drum to the outside.The remnant product layer will be removed because of oscillation effect by the influence of automatic shaking-bag mechanism inside the drum.
Advantages
1) Compact structure
2) Simple and tidy appearance
3) Convenient replacement of belt
4) Fast-bag-pulling speed
FAQ
1. HOW CAN WE VISIT YOUR FACTORY?
- IF YOU COME FROM ABORAD, AIR TO SHANGHAI OR NANJING AIRPORT, OR
IF YOU ARRIVE SHANGHAI, YOU CAN TAKE BULLET TRIAN
- IF YOU COME FROM DOMESTIC CITY, AIR OR TRAIN DIRECTLY TO NANJING
NAN OR WUXI EAST, WE WILL PICK YOU UP BOTH FROM AIRPORT OR
RAILWAY STATION
2. CAN WE VISIT YOUR END USER OR CONTACT THEM?
YES, WE WILL PROVIDE YOU THE NAME LIST, AND ARRANGE THE VISIT AFTER
THEIR APPROVAL.
3. HOW DO YOU PROTECT THE QUALITY?
AS STATE OWNED ENTERPRISE WITH MORE THAN 100YEARS HISTORY, WE HAVE
STRICT OPERATION POLICY,ADVANCED PROCESSING MACHINES TO
GUARANTEE THE PRECISION, WORKERS WITH OPERATION LICENSE, RELATED
COMPONENTS ARE FROM WORLD FAMOUS BRAND, SERIES OF TEST AND
INSPECTION ARE DONE IN THE WHOLE PRODUCING STAGE.
4. WILL YOU DISPATCH TECHNICIANS FOR INSTALLATION AND
COMMISSIONING?
YES, WE WILL UPON REQUIRED.
5. WHAT IS YOUR ADVANTAGE COMPARED WITH YOUR COMPETITORS?
QUALITY AND EXPERIENCE, WE ARE TOP CENTRIFUGE SUPPLIER IN CHINA,OUR
DESIGNS AND STRUCTURES
ARE ANALOGOUS TO WORLD LEADER BRANDS.
6. IS YOUR PRICE COMPETITIVE?
MY PRICE IS NOT THE LOWEST IN CHINA, BUT WE PROMISE, FOR THE SAME
QUALITY AND COLLOCATION, MY PRICE IS THE
MOST FAVORABLE, FOR THE SAME PRICE, MY QUALITY IS DEFINATELY
SUPERIOR TO OTHER BRANDS
7. DO YOU HAVE OEM SERVICE? DO YOU SPPPLY THE PARTS?
YES, WE DO, AS LONG AS YOU PROVIDE US YOUR DRAWING AND DETAILED
REQUIREMENTS
8. DO YOU SUPPLY SECOND HAND EQUIPMENTS?
NO, WE DON'T.
9. DO YOU HAVE AGENTS OR SERVICE CENTRE ABROAD?
WE HAVE SOME PARTERSHIP IN SEVERAL COUNTRIES AS INDONESIA, BRZIL,
USA.
10. WHAT PAYMENT MODE YOU ACCEPT?
TT, AND LC AT SIGHT
|
|
