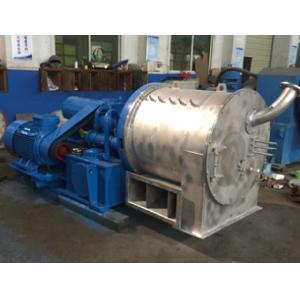

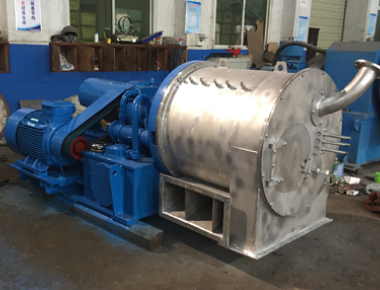

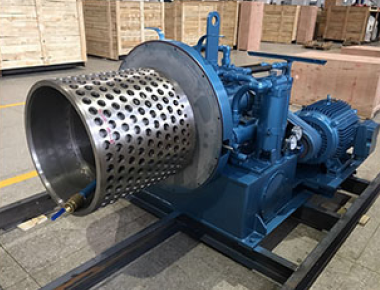

    Continuous Crystal Separation and Dewatering Salt Pushing Centrifuge System

    Ask Lasest Price
    Brand Name : Hanpu
    Model Number : PP-60
    Certification : CE ISO
    Price : USD18,000-USD65,000
    Supply Ability : 10 sets/month
    Delivery Time : 90 days
    • Product Details
    • Company Profile

    Continuous Crystal Separation and Dewatering Salt Pushing Centrifuge System

    Salt Production: Pusher Centrifuge Solution

    Continuous salt crystal separation and dewatering with low residual moisture and high machine availability.

    Overview

    This solution applies a two-stage pusher centrifuge for continuous salt crystal separation and dewatering. It suits sea salt, rock salt, and industrial salt. The multi-stage design enables optional in-machine washing and lowers discharge moisture to reduce downstream drying load.

    Representative Technical Data
    ParameterPP-50 typePP-60 type
    Basket diameter438/500 mm560/630 mm
    Max basket speed2000 rpm1360 rpm
    Pusher strokes40–80 min⁻¹70–80 min⁻¹
    Main motor37–45 kW55 kW
    Oil-pump motor22 kW30 kW
    Throughput (salt)≈12 t/h≈20 t/h
    Moisture after separation≈3–4%≈3–4%
    Overall dimensions (mm)3660×1420×20783127×1700×1955

    Values compiled from manufacturer specification pages for two-stage pusher centrifuges used in salt dewatering.

    Process Description
    1. Continuous feed: Salt slurry enters the first basket.
    2. Primary dewatering: Mother liquor drains through the screen to form a cake.
    3. Push to second stage: The cake advances for final dewatering.
    4. Optional washing: For higher purity, wash before the second stage.
    5. Continuous discharge: Low-moisture cake exits steadily.
    Benefits
    • Continuous operation with high solids yield and low specific costs.
    • Low residual moisture to reduce drying energy.
    • Multi-stage designs with high availability and minimal maintenance.
    Implementation Notes
    • Crystal size: target ≥ 150 µm for fast drainage.
    • Feed solids: typically 25–65 wt% for pusher centrifuges.
    • Materials: use corrosion-resistant steels (e.g., 316/duplex) on salt-contact parts.
    • Service: maintain hydraulic pusher system and motor/controls to OEM guidance.
