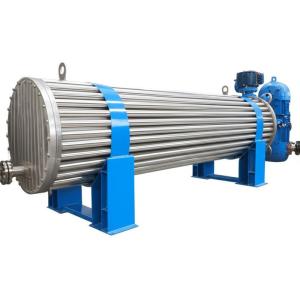

Multi Effect Evaporation Concentration Used Shell And Tube Heat Exchanger

Ask Lasest Price
Brand Name :	Hanpu
Model Number :	MVR
Certification :	CE ISO
Price :	USD180,000-USD650,000
Supply Ability :	10 sets/month
Delivery Time :	120days

Add to Cart

Product Details
Company Profile

Multi Effect Evaporation Concentration Used Shell And Tube Heat Exchanger

Multi-Effect Evaporation & Concentration — Shell-and-Tube Heat Exchanger

Multi-effect evaporation and concentration system using shell-and-tube heat exchangers

Engineer-to-order multi-effect evaporation (MEE) train built around shell-and-tube heat exchangers for efficient concentration of liquids across food, chemical, and environmental applications. Staged effects reuse vapor energy, reducing utility consumption while maintaining stable capacity and product quality. Options include TVR or hybrid MVR for further energy savings.

Key Benefits

Thermal economy: Cascaded effects cut steam use; TVR/MVR options lower OPEX further.
Robust duty: Shell-and-tube exchangers tolerate scaling, solids, and erosion better than narrow-gap plates.
Quality protection: Vacuum operation and optimized ΔT preserve color, flavor, and actives.
Easy maintenance: Removable bundles, mechanical cleaning, and CIP-ready design.
Scalable: Modular effects to match evaporation load and future expansion.

Process & Thermal Economy

Live steam heats the first effect; generated vapor drives subsequent effects in sequence, each at lower pressure/temperature. Optimized ΔT/LMTD, residence time, and circulation keep heat-transfer coefficients high and fouling low.

Materials & Cleanability

Wetted parts in SS316L/duplex (Ti/Hastelloy available for corrosives). Straight-tube or U-tube bundles, sloped/drainable layouts, and validated CIP enable long campaigns and fast turnarounds.

Process Overview — MEE with Shell-and-Tube

Flow: feed conditioning → multi-effect shell-and-tube heaters → vapor separation/condensation → condensate polishing → concentrate handling

Feed conditioning: screening/filtration, softening or pH trim to mitigate scaling/corrosion.
Multi-effect evaporation (vacuum): shell-and-tube heaters with effect-to-effect vapor reuse.
Energy recovery: optional TVR ejectors or hybrid MVR compressor for reduced utilities.
Condensate management: polishing (filters/RO/AC) to reuse or compliant discharge.
Concentrate routing: to finishing, crystallization, or ZLD solids handling as required.

Key Components

Shell-and-tube heaters (straight/U-tube) per effect with vapor–liquid separators
Preheaters, inter-effect vapor lines, surface condenser, vacuum/NCG handling skid
Options: TVR ejectors, hybrid MVR compressor, heat-recovery exchangers
PLC/HMI/SCADA; instruments (T/P/flow/cond/level)
CIP skid; anti-scale dosing and inline monitoring

Performance & Sizing

Parameter	Typical Range*
Effects	2–7 (duty/capacity dependent)
Steam economy (SE)	~2.0–7.0 (↑ with more effects / TVR / MVR)
Operating mode	Vacuum, continuous
Film/loop ΔT	Low to moderate for gentle evaporation
Materials	SS316L / duplex; Ti/Hastelloy on request

*Performance depends on feed composition, fouling tendency, compression ratio (if TVR/MVR), and exchanger design.

FAQ

When choose shell-and-tube over plate?

For scaling, particulates, or erosion risk, shell-and-tube offers higher robustness and easier mechanical cleaning.

Can we upgrade to MVR later?

Yes—start with pure MEE or MEE+TVR and add a mechanical vapor compressor to create a hybrid train with lower OPEX.

How do you control fouling?

By managing ΔT/LMTD and velocity, dosing antiscalants, scheduling CIP, and selecting materials suited to the chemistry.
